Quake was waiting to happen
S.B. Bhatia

The Epicentre of the Muzaffrabad earthquake (Saturday, October 8, 2005) which measured 7.4 on the Richter Scale and which affected area in northern Pakistan and parts of Kashmir, lies in one of the most spectacular and tectonically complex regions of the Himalaya.

The worst affected areas of Balakot and Muzaffrabad , close to the epicentre, lie in the axial region of a tongue-like “projection” around which the rock formations exhibit abrupt hairpin like bend — as if the “projection” acted like a pivot resisting or obstructing the northward movement of the Indian Plate.

This spectacular geological structure was first discussed in a publication of the Geological Survey of India (1931) by the late Dr D.N. Wadia, the doyen of Indian geology and the founder Director of the Wadia Institute of Himalayan Geology, Dehradun, who referred this geological structure as “Hazara Kashmir Syntaxis” (HKS). Wadia’s concept of a syntaxial bend was soon accepted and recognised by geologists the world over.

In recognition of his work, Wadia was soon elected a Fellow of the Royal Society, London — the first Indian geologist to be so honoured.

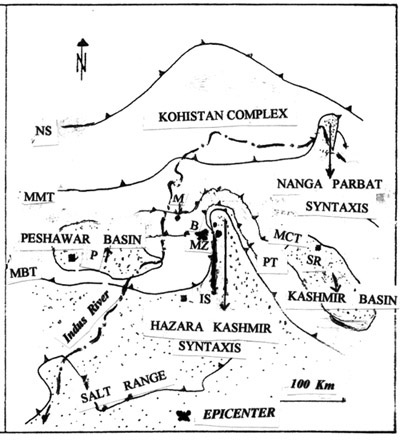

Besides the hairpin like bend, Wadia also mapped several “Thrust” faults which, sort of envelop the axial region of the syntaxis. Four of these thrust faults (see figure) designated as MBT, PT, MCT and the MMT, extend and splay out on either side of the syntaxis and have been mapped throughout the Himalaya on a regional scale.

A thrust fault is defined as a low-angle reverse fault in which the “hanging wall” appears to move up. relative to the “foot wall”. In the case of a normal fault, the hanging wall appears to move down (due to gravity) relative to the foot wall.

The trust faults of the HKS also form a loop around the apex of the syntaxis and bring successively older and metamorphosed rock formations to lie over the younger rock formations (35 million years) which form the core of the syntaxis.

The epicentre which lies WNW of Muzaffrabad and west of Balakot occurs in a structurally complex zone where one of the thrusts — the PT — intersects the MBT north of Balakot but separates again and splays out westward south of the town . North of Balakot, the axis of HKS bends northeast wards and continues beyond as Nanga Parbat Syntaxis (see figure).

The MBT which dips 50° due east north of Balakot, dips steeply >.70° near Muzaffrabad with a stratigraphic displacement of 3300m.

Yet another major dislocation plane — the Jhelum Fault — which is a left-lateral strike — slip fault, dislocates the MBT between Balakot and Muzaffrabad (Kazmi and Jan, 1997). This fault (shown in solid black line in figure ) offsets the western limb of the HKS by about 31 km.

The Muzaffrabad earthquake apparently resulted as a sequel to movements along the PT and MBT intersection near Balakot, compounded by the left-lateral displacement along the Jhelum Fault. The Balakot-Muzaffrabad axis, thus, had the potential of a major earthquake and it is surprising that it did not occur all these years.

Two other worst affected areas — Mansehar (shown M in the figure) and Islamabad (shown IS in figure) lie close to and south of the MCT and the MBT respectively. These two thrust faults were also apparently activated as a sequel to the major tectonic movements in the vicinity of the epicentre.

The writer is a retd. Professor of Geology, Panjab University, Chandigarh
