Lessons from Delhi Metro
G.S. Dhillon

Photo by Mukesh AggarwalAll the tunnelling of Phase I of the Delhi Metro Rail Project was completed on September 3, 2004. In this phase 11 km long underground corridor of the Metro, running from Delhi University to Central Secretariat, involving tunnelling over a length of 7880 metres has been completed.

For this purpose three types of tunnelling machines were deployed and these were TBL (Tunnel Boring Machine) for work in rock and hard soil, EPBM (Earth Pressure Balance Machine) for work in the soft soils, and the NATM (New Austrian Tunnelling Machine) which is versatile equipment and work both in the hard rock and soft soils and this machine is not ‘boring type’ but excavates the material, then places a protective layer of cement gunite (sprayed cement) and temporary support if needed, till the permanent lining is placed. Whereas in the other two, as the machines bore through the material and slide forward, the permanent lining comprising of pre-cast segments are placed in position.

Whereas the EPBMs started work on 19.8.2002 and the TBMs on 25.8.2003, the NATM was introduced in the last phase of the work i.e. on 21.7.2003, to speed up the progress of the tunnelling and to meet the scheduled target. So the tunnelling work, started in August 2002, was completed in two years or so.

The balance 7 km of the underground corridor is being constructed using ‘cut and cover’ method. The tunnelling was adopted only in those areas where ‘surface disturbance’ was not permissible, such as in the areas of Connaught Place, Chawri Bazar, New Delhi Station and Delhi Main Station.

TBMs were used in the hard rock areas where quartzite type abrasive rock was encountered i.e. between the Delhi Main Station and Chawri Bazar. Total length handled was around 1809 metres and task was completed in just 534 days, which gives the daily progress of 3.38m (11 ft).

EPBMs were used in soft soil reaches, such as Kashmiri Gate to Delhi Main Station and also in the reach between New Delhi Station and Connaught Place. With this type of machines some 5304m length tackled in 753 days, which put the daily progress of about 8m/day (26.25 ft.) which is creditable.

NATM was deployed in the reach between Chawri Bazar and New Delhi Station. The length tackled was 767 m and time involved 567 days, which puts the daily progress at just 1.35 metres/day (4.45 ft).

Problems faced

During the work, the engineers had to face challenge in view of the difficult ground conditions below the surface and the necessity to ensure that complete safety of the buildings at the top as the tunnelling activity was carried out in extremely difficult areas like Nai Sarak, Chawri Bazar, Chandni Chowk, Hauz Quazi etc having very old buildings.

Twin tunnels, for UP and DOWN movements of trains involved pacing of very high grade (M45) concrete to yield a completed tunnel of inner diameter of 5.7 m.

The underground metro corridor is being opened in two stages, with the Delhi University to Kashmiri Gate in December this year and rest in second stage around June 2005 which would extend the line to Central Secretariat.

So by June 2005, two underground metro lines would cross over each other under the surface in the Connaught Place.

Barakhamba road-Dawarka line would run along the direction indicated by the Metro Boards currently dotting the Barakhamba Road. There would be four Subways to access the Connaught Place Metro Station, from where trains will go in four different directions such as Super Bazar, Jan Path, Baba Kharak Singh Marg, between Minto Road and Panchkuian Road. There will be a Central Park and an amphitheatre, a green park near the Connaught Place Metro Station (CPMS).

CPMS will have two levels where separate lines will run. Through Subway one will enter the 1st levels which will be the Concourse Level. Here one will be able to buy the ticket and then enter the 1st level Platform, from there one could proceed to Central Secretariat and Vishwavidyala (University) line. For other locations one would have to descend to the IInd Level.

In this structure, ‘fire safety measures’ adopted will conform to international standards. There would be provision of evacuation of all people in just six minutes.

Move is on to extend the system to other surrounding areas. Move is underway to cover area upto Gurgaon through a line starting from IFFCO Chowk Gurgaon to Mahrauli and also to Noida City, Sector 18 and to New Ashok Nagar, New Delhi.

Looking at the encouraging results obtained by the Delhi Metro Rail Venture, there is a strong case for the adoption of the similar set by other metros and state capitals while planning their MST (Mass Rapid Surface Transport) Systems.

Top

Electronic backseat driver

Drivers may soon have no excuse for ignoring road signs. Australian scientists have invented an electronic driver’s assistant system, similar to the backseat driver who forever points out road signs and warns against speeding. “The Australian invention is part of a global effort to make drivers more aware of road signs, especially those concerned with safety,’’ says New Scientist magazine.

The new driver’s assistance system (DAS) developed by National Information and Communications Technology Australia (NICTA) in Canberra detects road signs and warns drivers to slow down.

“DAS uses three cameras: one to scan the road ahead and a pair to monitor where the driver is looking,’’ the magazine said.

A computer system fitted behind the dashboard collates the information with data on the speed the car is going.

If it appears the driver has not seen a sign or has not slowed down, a warning is issued.

In preliminary tests, DAS performed “pretty well’’ even at high speeds, according to its developers. They plan to test it in full-scale road trials with many types of road signs soon. — Reuters

Top

New products & discoveries
A jacket for your heart

The concept is simple: to halt deterioration of the heart muscle, wrap it in a mesh-like net to prevent further enlargement in patients with heart failure. It’s like a jacket for the heart.

New research results from Saint Louis University and other institutions across the country found the "heart jacket" technique helped patients feel better and reduced the likelihood that they would need a heart transplant.

"There was a clear improvement in the size and shape of the heart, returning it to a more normal configuration," says Paul Hauptman, M.D., a SLUCare cardiologist and associate professor at Saint Louis University School of Medicine. "It’s a potentially revolutionary approach."

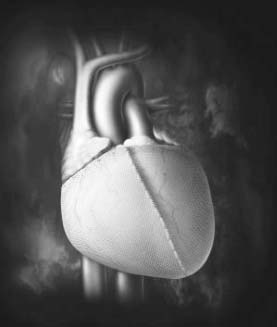

The CorCap Cardiac Support Device is an investigational, mesh-like heart "jacket" that is slipped around the heart during chest surgery and stitched in place to prevent any further enlargement. It is made from a custom knitted polyester fabric and is intended to be an adjunctive therapy for patients with moderate to severe heart failure.

E-devices minus lead

Scientists in Japan have created a new material that could someday replace toxic components in many electronic devices. With growing concern over the disposal of cell phones, computers, and other gadgets containing hazardous materials, the team proposes that its discovery will render future devices less harmful to the environment.

The innovation is a type of piezoceramic-a material that shrinks or swells when an electric field is applied. The ringers in cell phones, for instance, are made from piezoceramics that vibrate at high frequencies in response to an electric signal. The effect also works in reverse-squeeze a piezoceramic, and it generates an electric field. That produces a spark in a barbecue igniter, for instance. Sonar systems, fuel injectors, and many sensors also rely on these shape-changing materials.

Dino armour was perfect

Their armour was perfect; even their eyelids consisted of plates of bone. What are known as ankylosauruses are among the best armoured animals known to us. These herbivores were up to 10 metres long, with a tail ending in a huge bony club - ‘probably used as a weapon’, says Torsten Scheyer, ‘even though they definitely could not simply swing it back and forth; the whole construction was simply too stiff for that.’

Torsten Scheyer has examined the dinosaurs’ armour as part of his diploma thesis. The results are astonishing: ‘The armour plating is not nearly as similar to those of the crocodile as was previously assumed,’ he adds. ‘Their microstructure is substantially more complex, at least in some types of ankylosaurus’.

Top

HOME PAGE

UNDERSTANDING THE UNIVERSE
Prof Yash Pal

Prof Yash Pal

Prof Yash Pal

What is a white hole? What is the difference between a white hole and a black hole?

Equations that describe the formation of a black hole would be equally valid if the direction of time were reversed. In that case you would be describing something like a black hole bursting out with light matter and energy. This might be termed as a white hole! The only problem is to find a way of reversing time! As far as I know, while there is definite evidence for the existence of black holes there is none for "white holes". Scientists like to speculate and dream — even the impossible. You could, of course, say that the origin or origins of the universe was/were just one or more white holes bursting forth — just one such explosion if you believe in the big bang theory and more if you want some sort of continuous creation!

We know that matter can be converted into energy during certain processes like nuclear fusion. Can energy be converted back into matter? If yes then is it just theoretical or is there an experimental evidence for this?

Equivalence of mass and energy has been shown in a large number of experiments and natural phenomena. It was first seen in cosmic ray studies when positive electrons were discovered. Production of a host of new elementary particles happens in interaction of cosmic rays but in a much more controlled manner in accelerator experiments. For this conversion to occur all that needs to be assured is that the discrete and dynamical conservation laws are not violated. A high-energy photon cannot be converted into an electron positron pair traveling freely in vacuum. This can happen only if this happens next to another particle or nucleus that can help to conserve overall energy momentum. Take it from me. This two-way conversion is an established fact. I might draw your attention to the fact that in evolutionary cosmology the universe itself began as pure energy and all the mass you see was the result of subsequent development. E = Mc^2 of Albert Einstein stands fully vindicated.

Where would be the poles of a spherical magnet?

The magnets you are familiar with are produced by aligning the microscopic magnetic domains of a magnetic material. We assign magnetic moments even to individual charged particles whenever they have a spin angular momentum. Nuclei of atoms also have spins. Think of them as tiny magnets that, in a non-magnetised state of the bulk material, are randomly oriented. Magnetisation is a process of alignment. Therefore for a magnet in a spherical shape the poles would be positioned depending on the way the sphere was magnetised. It might happen, though, that in an irregular shaped material, internal interaction between domains might produce a localised unpredictability in the magnetic field.

How do computers keep track of date and time even when they are switched off?

Computers have electronic watches very much like the modern watches we wear on our wrist. They have small batteries that continue to run the clock when the power is off. Ordinary button batteries we use in our watches would do, but small rechargeable batteries are also possible. Even for computers, function needs energy.
